Push-To-Talk Handsets

MCPTT-1 ATEX

MCPTT-1 ATEX delivers intrinsically safe Push-to-Talk communication with ATEX Zone 2 certification for hazardous industrial environments.

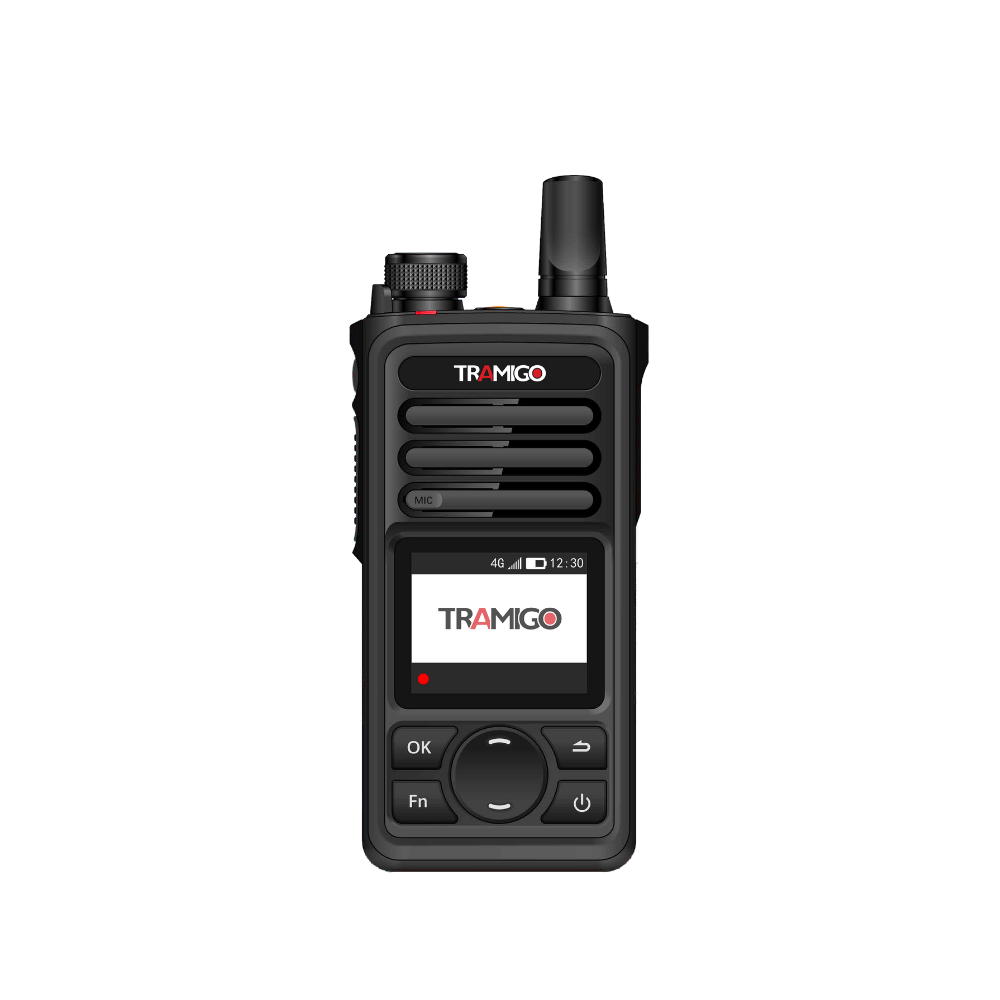

MCPTT ATEX front

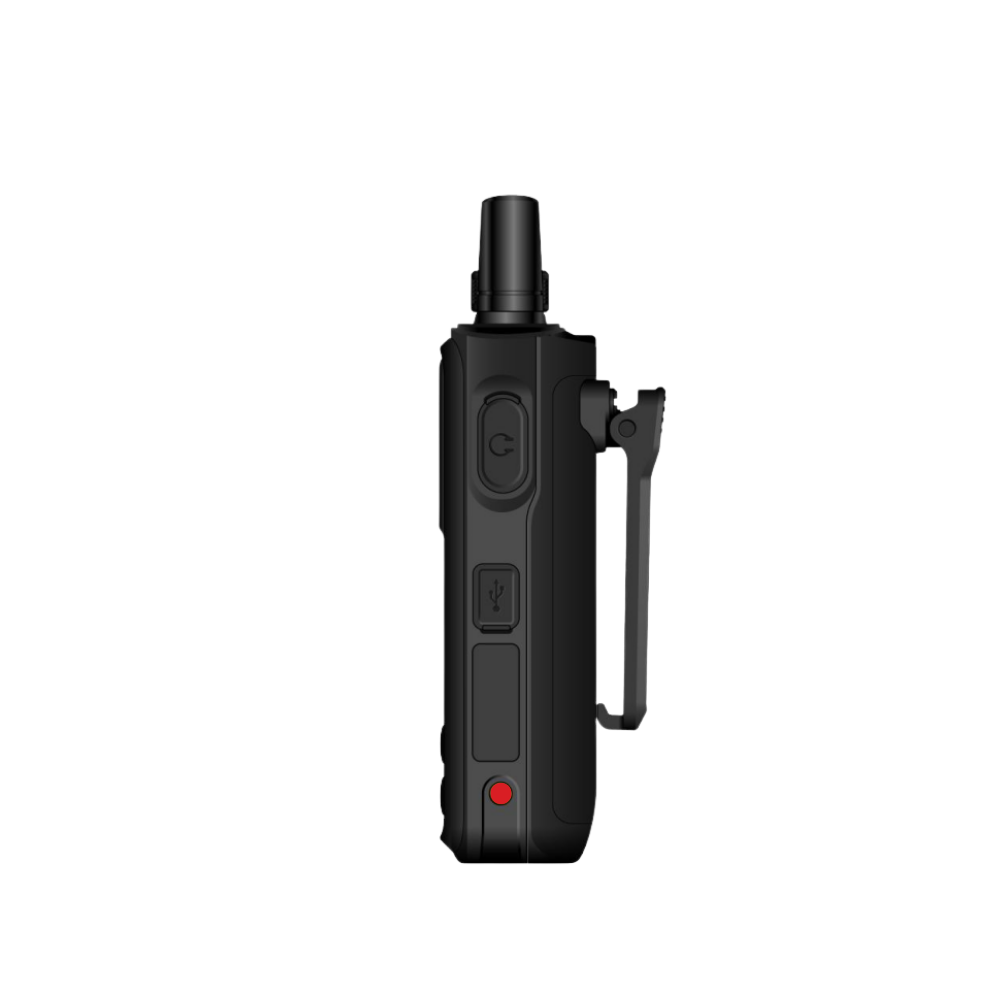

MCPTT ATEX side 2

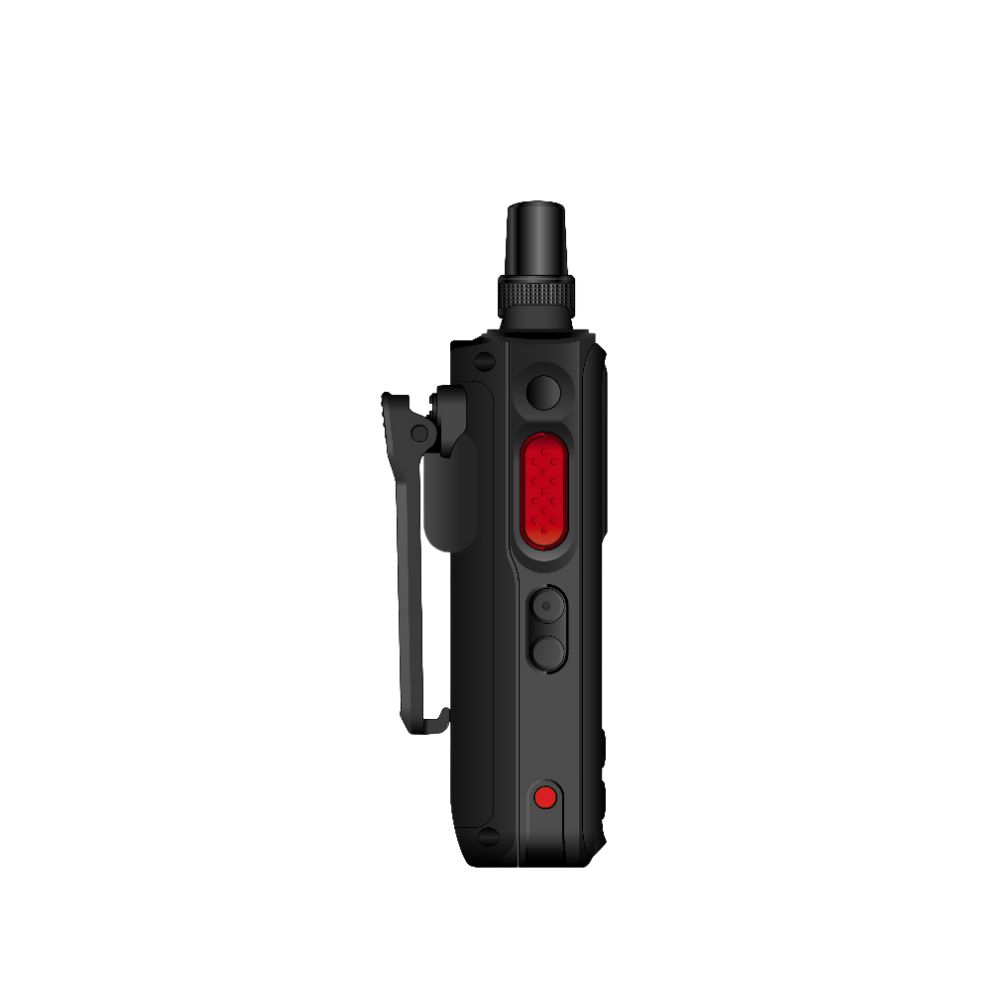

MCPTT ATEX side

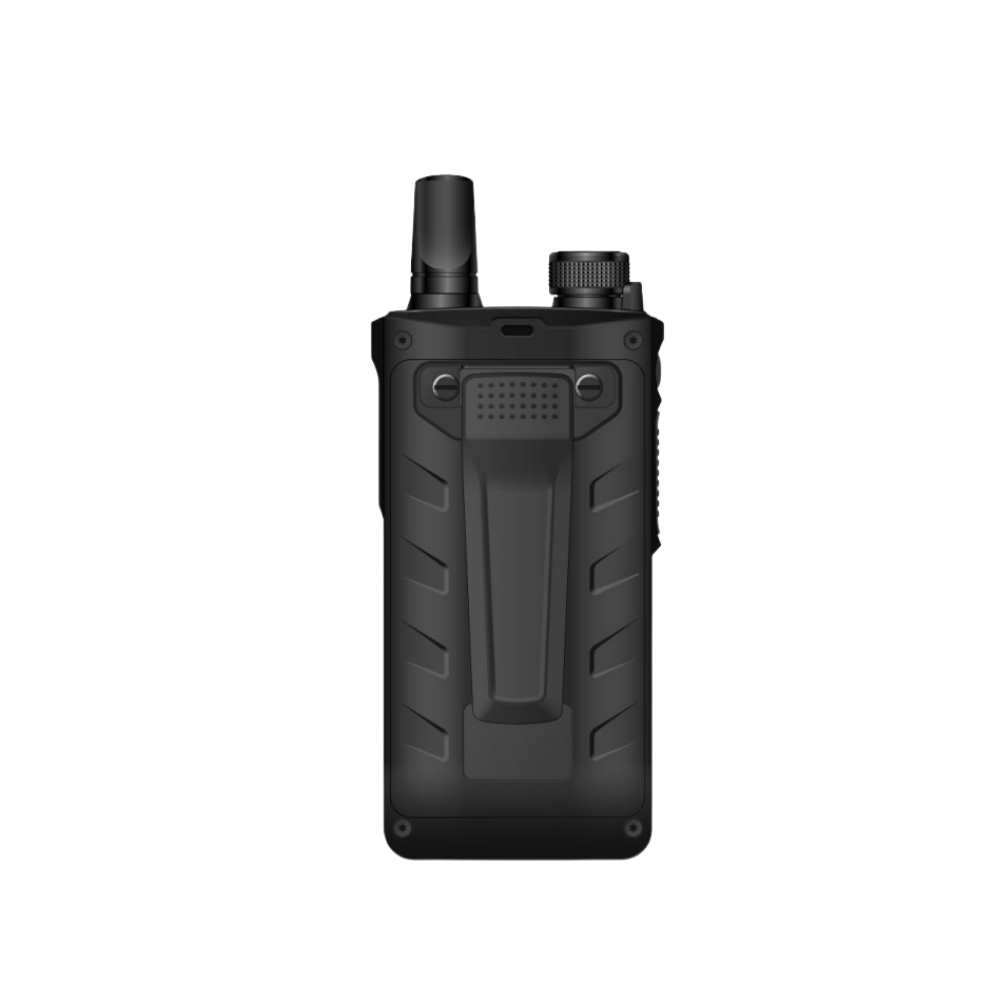

MCPTT ATEX back
Download PDF

Key Features

ATEX Zone 2 certified
Works over 4G, 3G, and 2G
AES-256 encrypted communication
Real-time multi-GNSS location tracking
Instant one-to-one and group calling
Rugged industrial-grade construction
Removable anti-explosion battery
Multi-network connectivity

Physical Specifications

Dimensions: 117 × 60 × 29.2 mm

Processor & Memory

MTK8765m CPU, 1.5 GHz
512MB RAM + 4GB ROM
Optional 1GB RAM + 8GB ROM

Display

1.77″ TFT display
128 × 160 resolution
Non-touch screen

Audio System

3W speaker
Smart noise reduction

Battery & Power

4800 mAh removable battery

Interfaces & Sensors

3.5 mm PTT earphone interface
USB Type-C port
Acceleration sensor
Light sensor

Wireless Connectivity & GNSS

Wi-Fi 802.11 a/b/g/n (2.4G & 5G)
Bluetooth 4.2
Optional NFC
GPS / BeiDou / GLONASS / AGPS

Cellular Network Support

2G GSM: B2/3/5/8
3G WCDMA: B1/2/5/8
FDD-LTE: B1/3/5/7/8/20/26/28a&b
TDD-LTE: B34/38/39/40/41

Software & Operating Environment

Android 8.1 Go OS
Working temperature: -20°C to +60°C
Storage temperature: -30°C to +70°C

Protection & Special Features

IP68 protection
MIL-STD-810G certified
RTK positioning support
Anti-explosion battery
IS standards compliant:

  • II 2 G Ex ib IIC T4 Gb IP68
  • II 2 D Ex tb IIIC T120°C Db IP68
